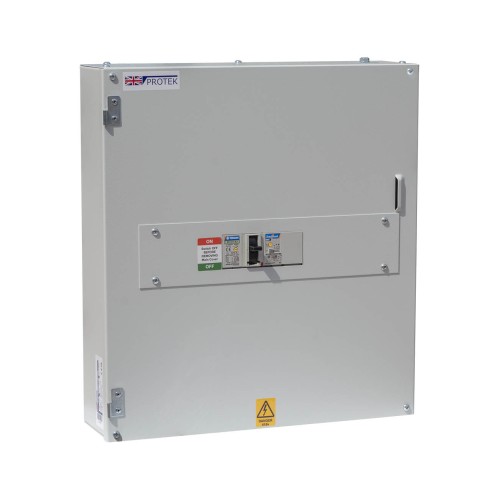

Fully Adjustable 250A 3 Phase RCBO with Metal Enclosure RCBO3-250TSM

Fully Adjustable 250A 3 Phase RCBO with Metal Enclosure RCBO3-250TSM
Fully Adjustable 250A 3 Phase RCBO with Metal Enclosure RCBO3-250TSM
Enclosed metal adjustable 4 pole CBR / MCCBs with earth leakage protection. Designed and built in the UK to BSEN 61439-2.

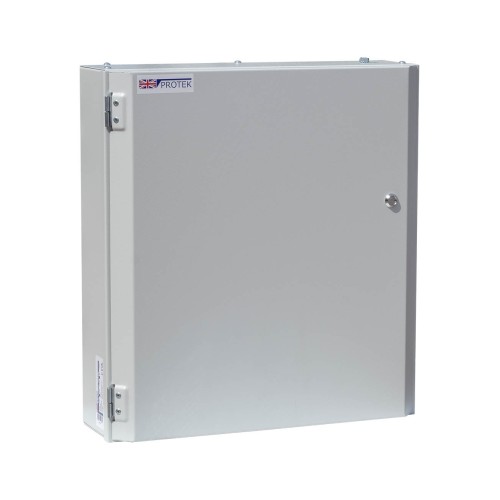

Metal Enclosure Specification

  • IP4X mild steel
  • RAL 7035 Epoxy resin finish
  • Wall mountable
  • Lockable
  • Hinged removable door
  • Removable gland plates top and bottom

63A-250A 4 Pole CBR with ELR

  • Fixed thermal adjustment 80% or 63%
  • Adjustable trip current setting
  • Adjustable time setting for trip
  • Lug style connection
    63A-125A - 16mm Palm width 8 mm bolt
    160A-250A - 22mm Palm width 8mm bolt

400A 4 Pole MCCB with ELR

  • Fixed thermal adjustment 80% or 63%
  • Adjustable trip current setting
  • Adjustable time setting for trip
  • Lug style connection
    400A - 30mm Palm width 10mm bolt


£1,042.76
  • Model: RCBO3-250TSMS
